• Paint, solid
• Bumper, front, chrome (Includes body-color lower with SLE or SLT Models)
• Bumper, rear, chrome step, includes pad (Not available with (ZW9) Pickup bed, delete)
• Air dam, Gray
• Wheel flares, front only (With (C4M) GVWR, 9,900 lbs. (4491 kg) includes rear wheel flares unless (ZW9) Pickup box delete is ordered. - See Color & Trim section for available colors)
• Grille, chrome surround
• Headlamps, dual halogen composite, includes flash-to-pass feature and automatic lamp control
• Daytime running lamps, includes automatic exterior lamp control
• Fog lamps, front, halogen (Not available with (ZW9) Pickup bed, delete)
• Lamps, amber roof marker (Standard with (C7W) GVWR, 11,400 lbs. (5171 kg) only)
• Lamps, dual cargo area lamps
• Mirrors, outside rearview, manual folding, power, heated, Black (Upgradeable to (DL3) Mirrors, outside rearview, power folding, power heated when (C4M) GVWR, 9900 lbs. (4490 kg) is ordered or (DPF) Mirrors, outside rearview, power, heated, camper-style)
• Glass, Solar-Ray deep tinted (all windows except light tinted glass on windshield, driver and front passenger) (With Regular Cab Models, includes rear window. - With Extended and Crew Cab Models, includes rear and rear quarter windows. - With (C49) Defogger, rear-window, electric, includes light-tinted rear window)
• Wipers, intermittent, front wet-arm with pulse washers

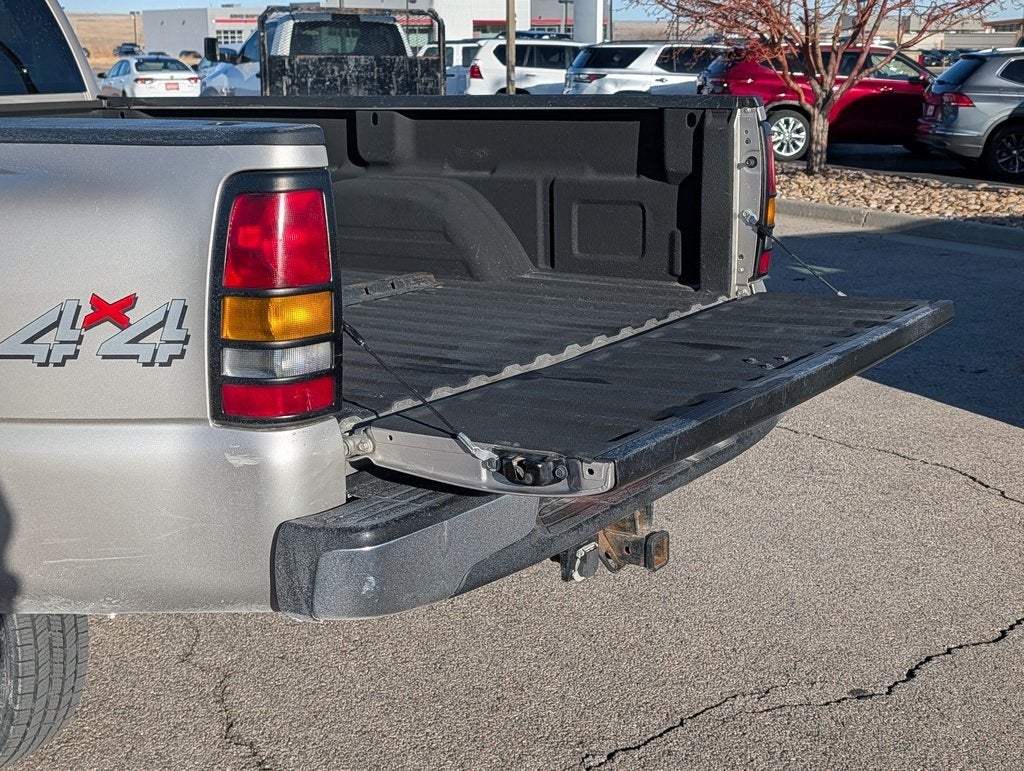

• Tailgate protection, top of tailgate protection cap (Not available with (ZW9) Pickup bed, delete)

• Seat trim, Leather (Not available with Regular Cab Models. - Extended Cab Models include Front Leather seating surfaces with Rear Vinyl Bench. - Crew Cab Models include Front and Rear Leather Appointed seating surfaces)

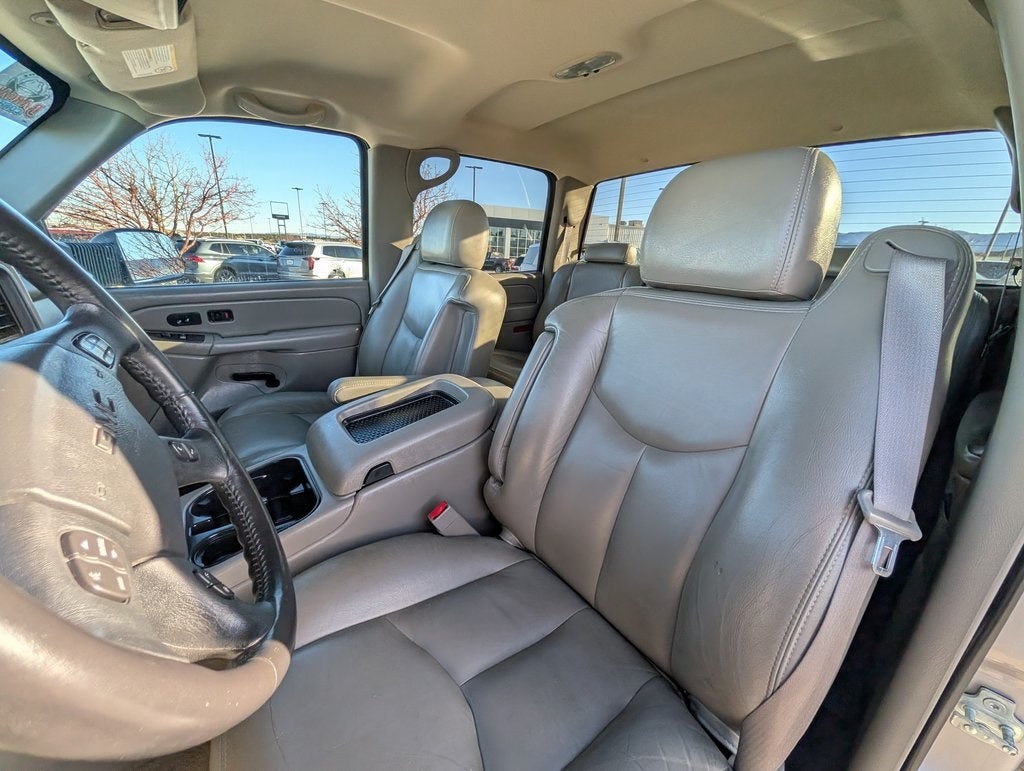

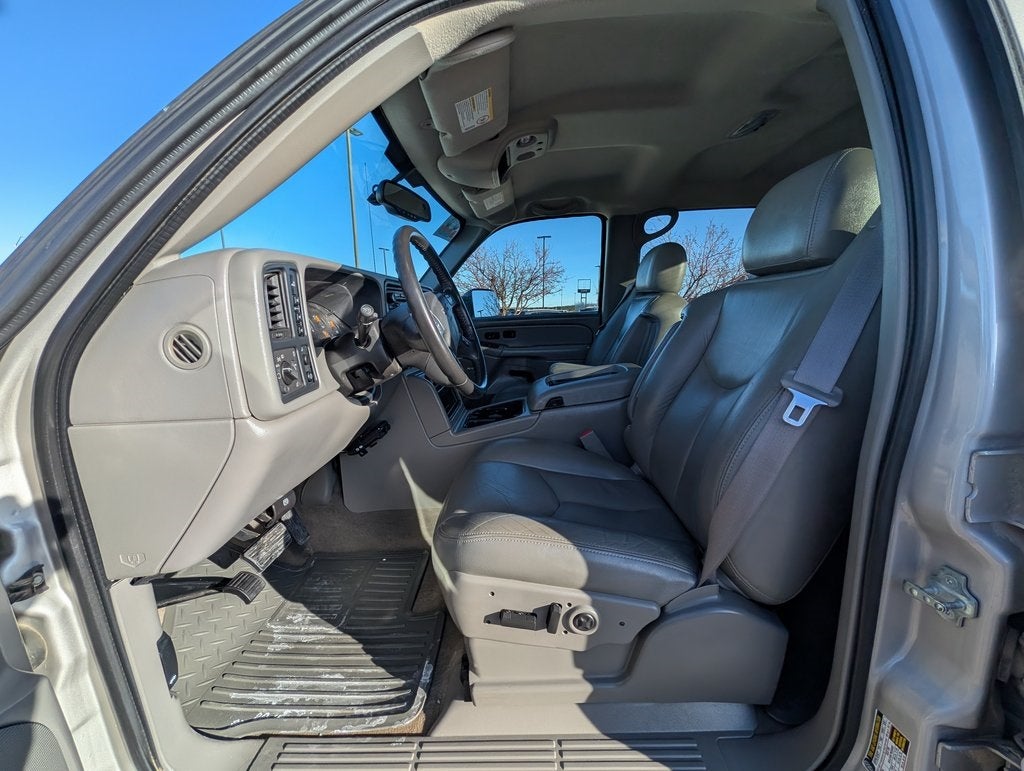

• Seats, front power reclining full-feature buckets, includes adjustable head restraints, floor console, driver and passenger power lumbar, driver and front passenger 10-way power adjustable, dual inboard armrests, heated driver and passenger cushion and back, 2-position driver-side memory and storage pockets

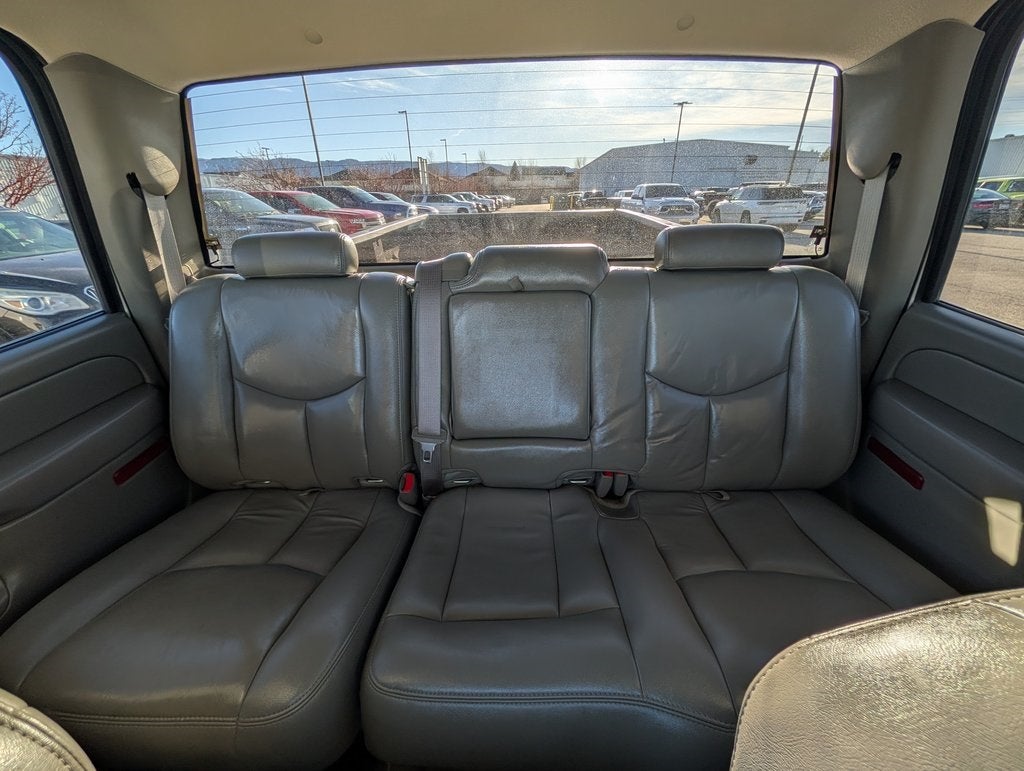

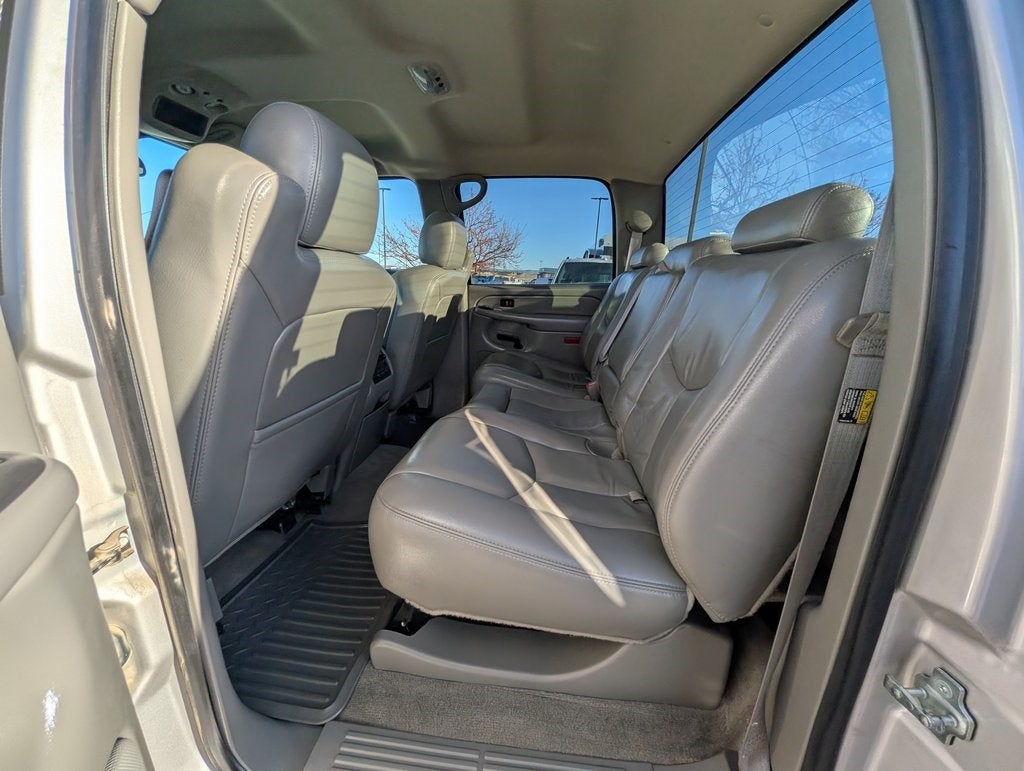

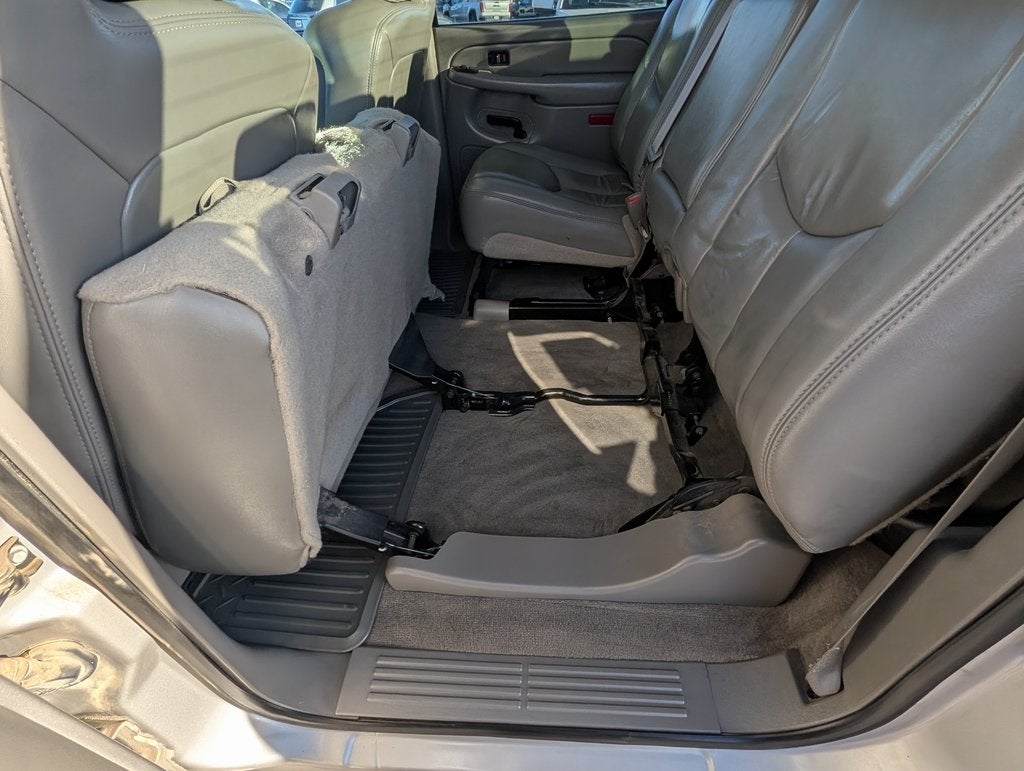

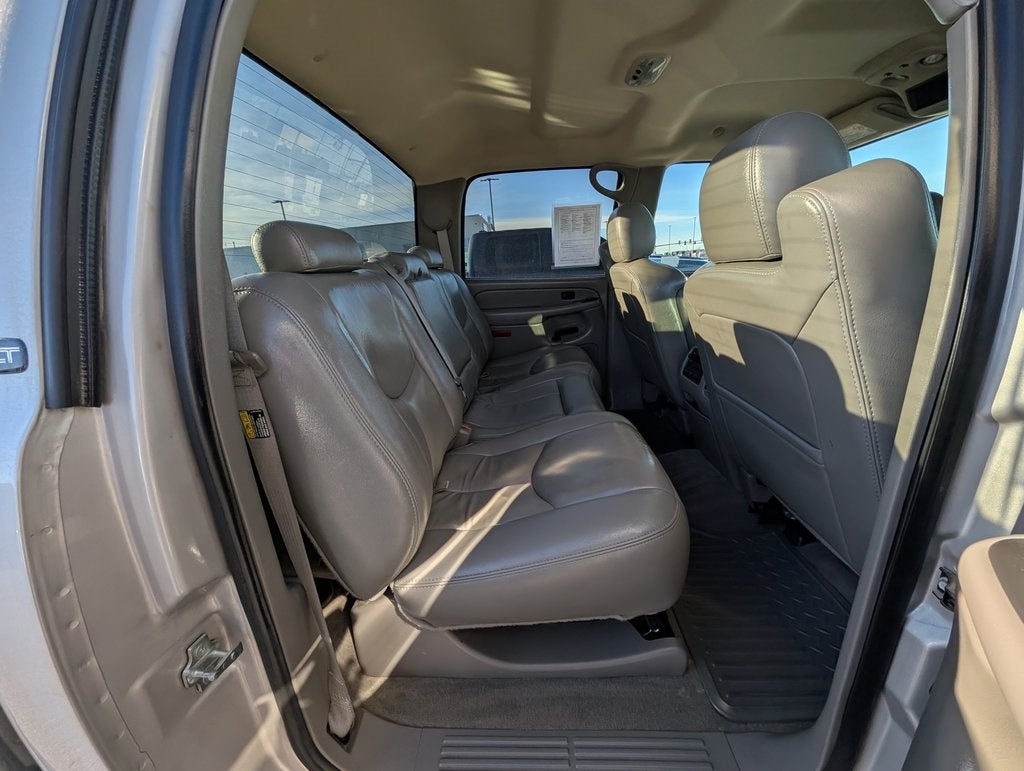

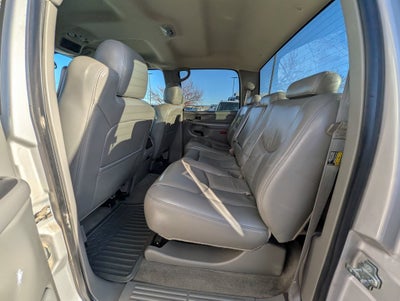

• Seats, rear bench, folding, 3-passenger (includes top tethers and lower anchors for child seat)
• Seat adjuster, power, driver 6-way (With (AN3) Seats, front power reclining full-feature buckets, includes 10-way adjuster)
• Seat adjuster, power, front passenger 10-way (Included and only available with (AN3) Seats, front power reclining full-feature buckets)

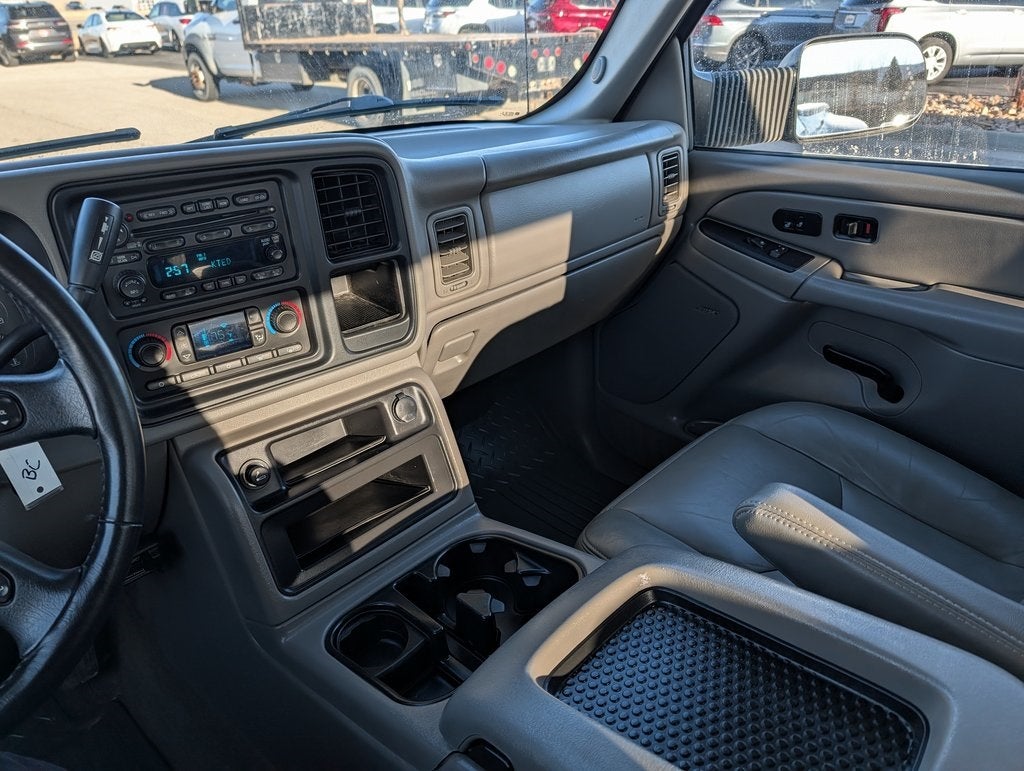

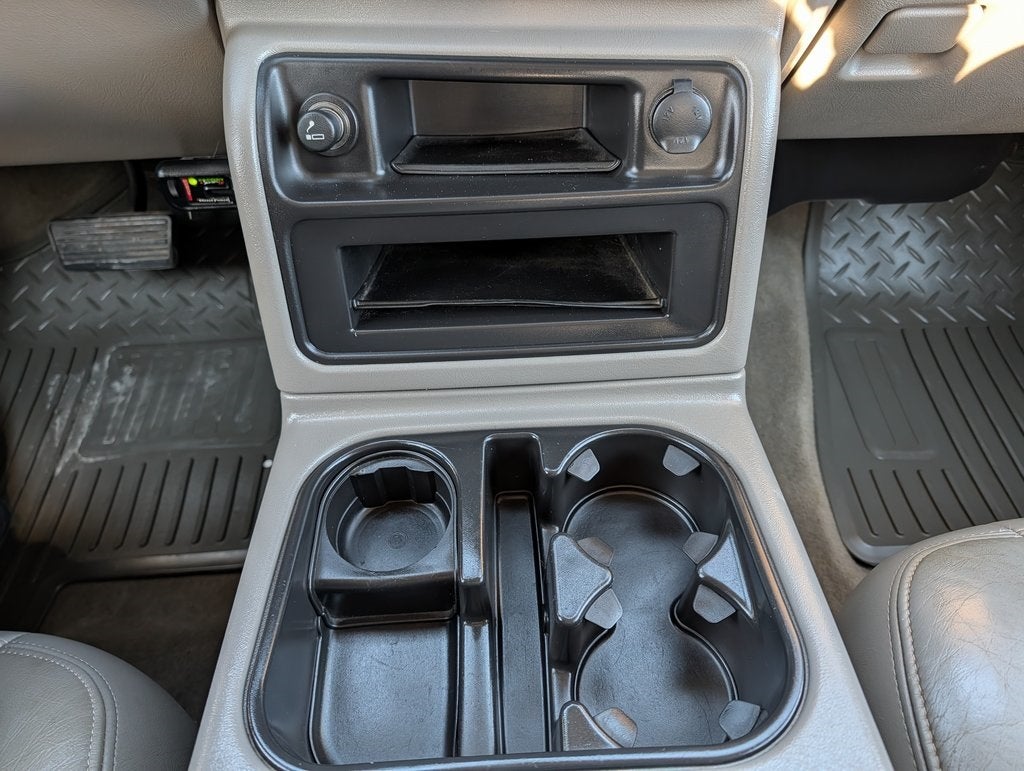

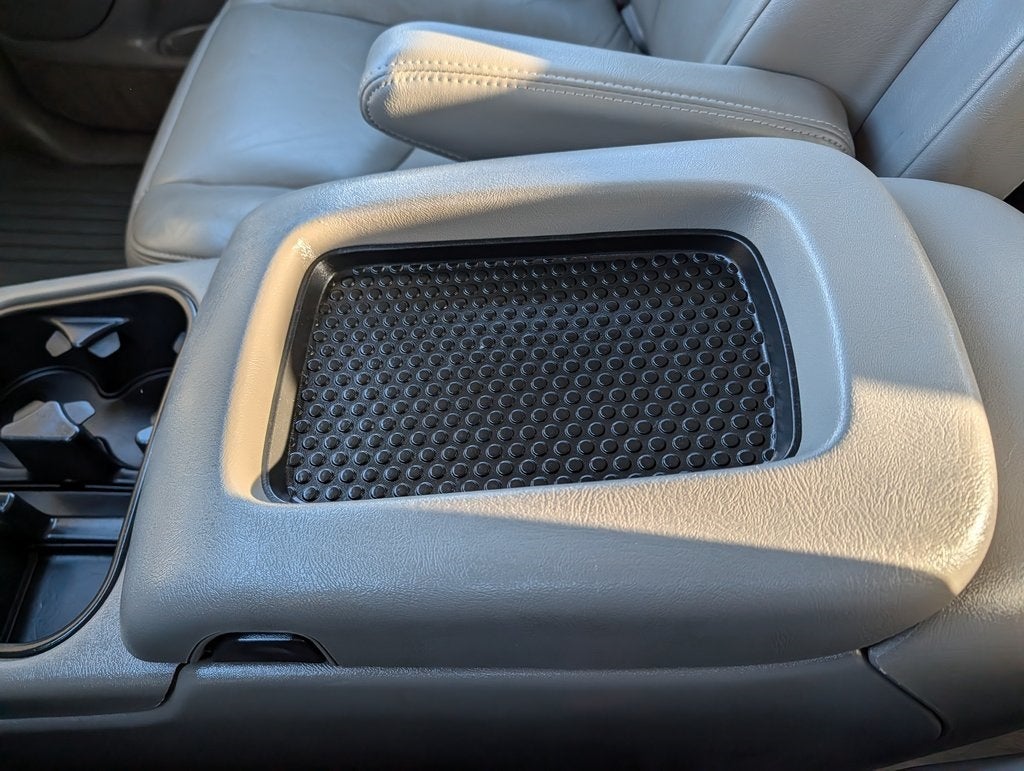

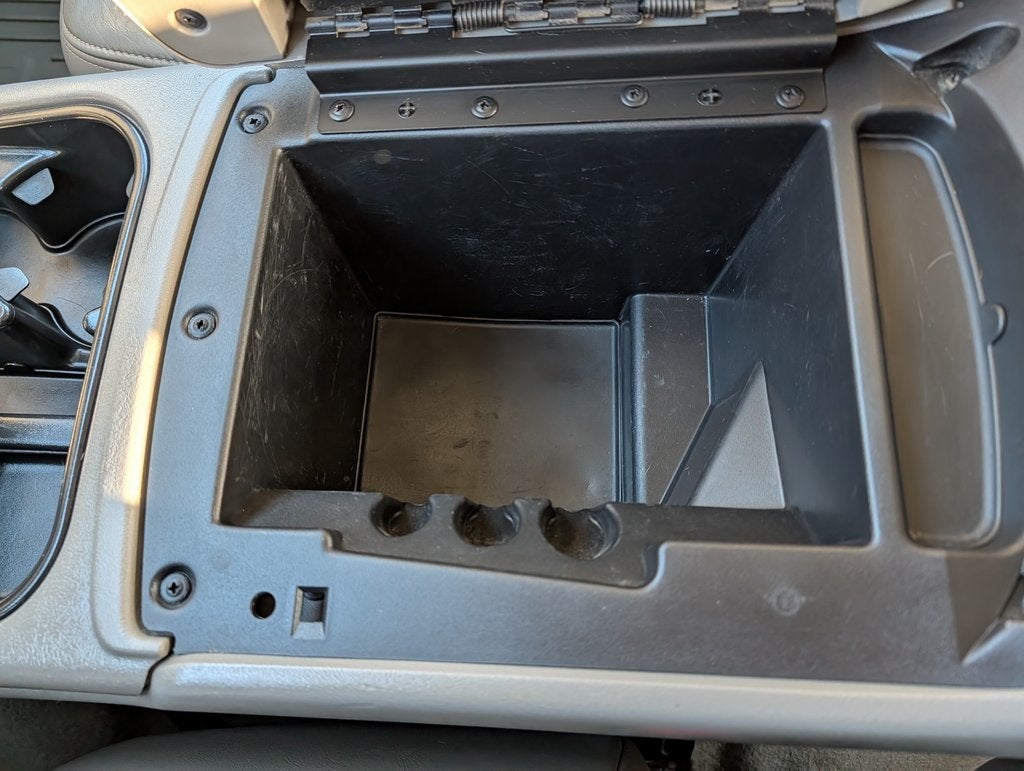

• Console, floor, includes storage compartment and dual cupholders

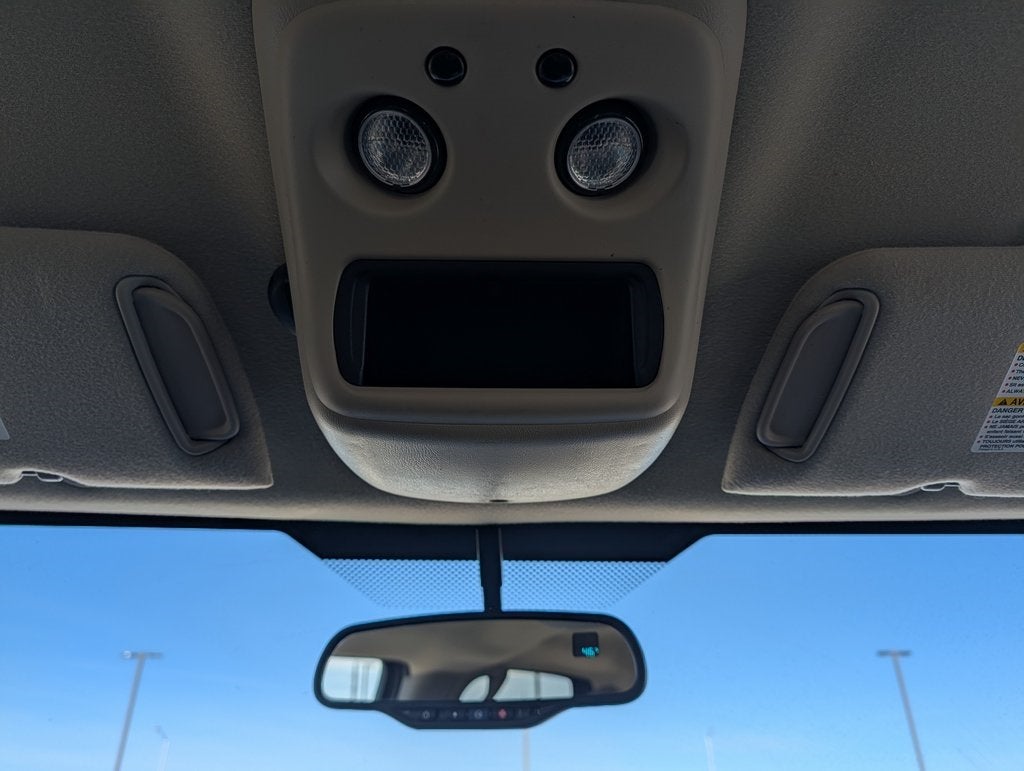

• Console, overhead mini, includes map lights (Not available with (CF5) Sunroof, power)
• Floor covering, color-keyed carpeting, and rubberized vinyl floormats (with Extended Cab, includes rear floormats)

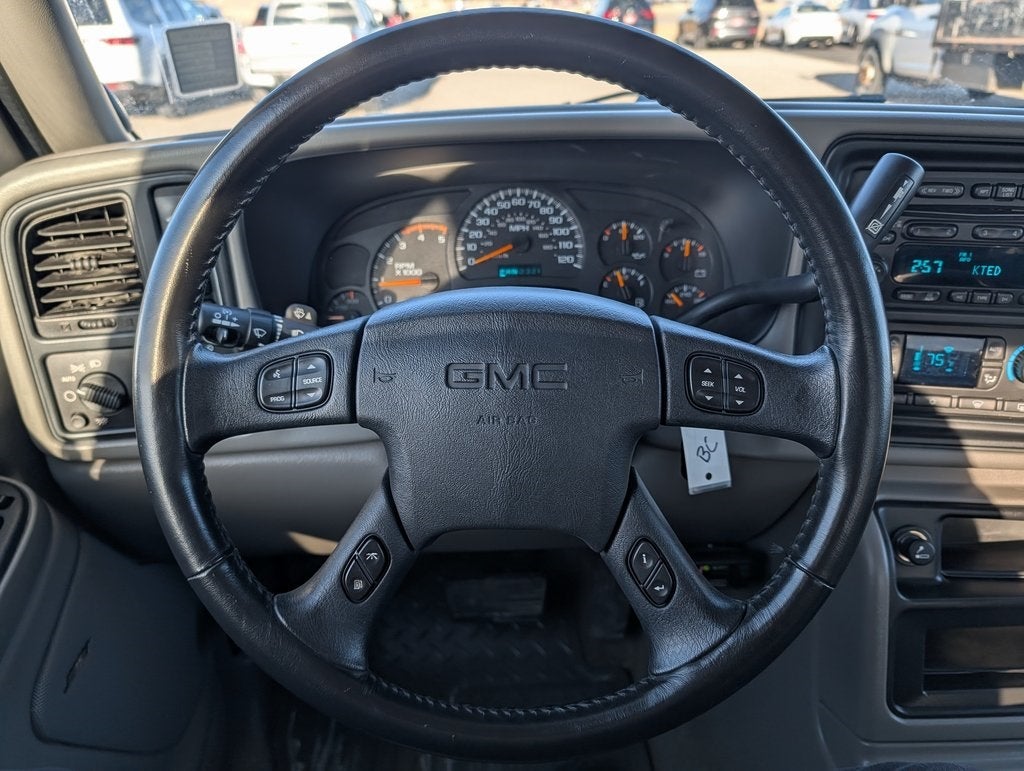

• Steering wheel, leather-wrapped rim, Black, steel sleeve, includes theft-deterrent locking feature
• Theft-deterrent system, PASSLock II
• Warning tones, headlamp on, key-in-ignition, driver and passenger buckle up reminder, turn signal on
• Defogger, rear-window, electric (Not available with (A28) Window, rear sliding)
• Cruise control, electronic with set and resume speed, includes telltale in instrument panel cluster
• Door locks, power

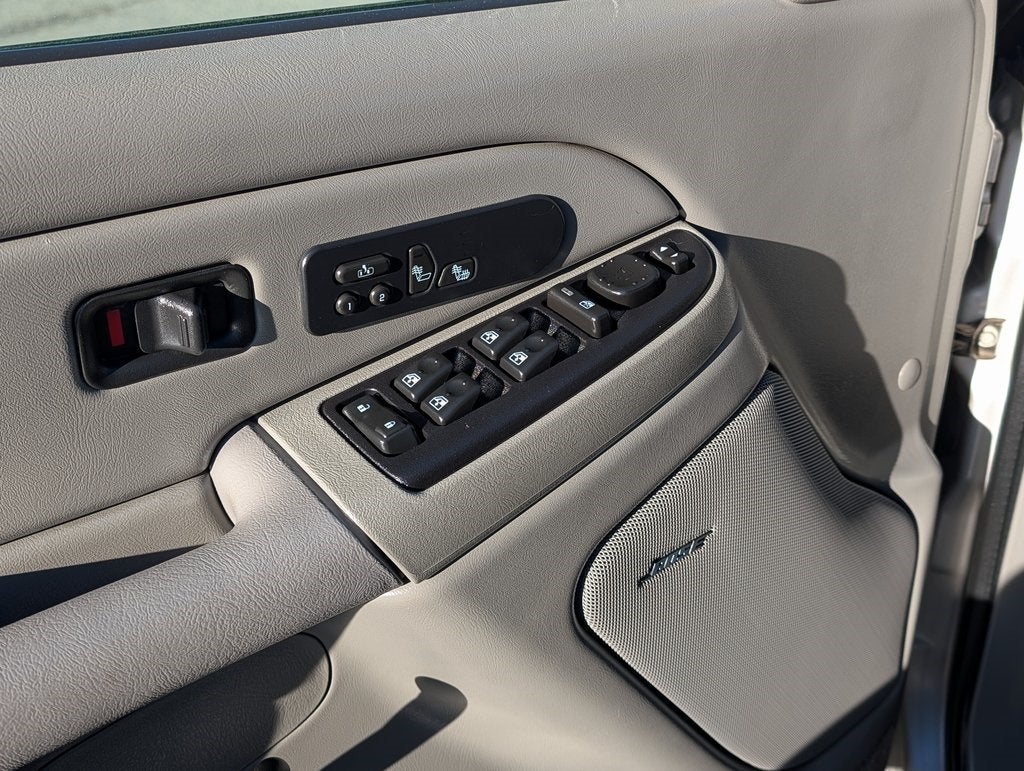

• Windows, power, includes driver and passenger express-down

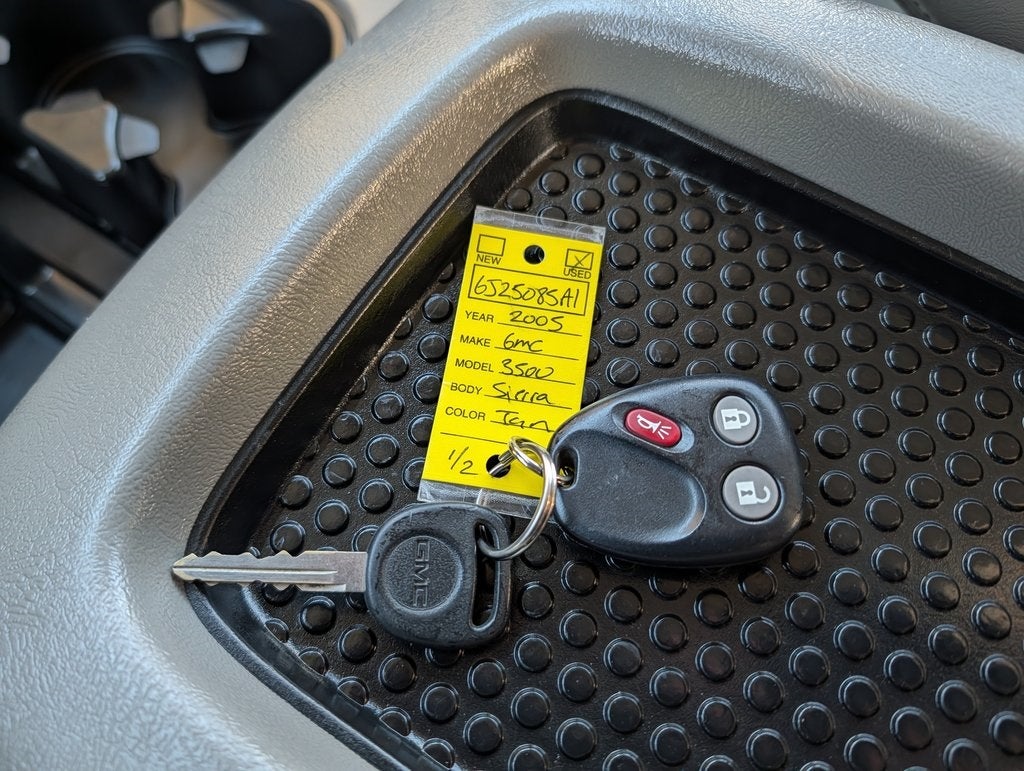

• Keyless entry, remote, includes 2 transmitters, panic button and content theft alarm
• OnStar, 1-year Safe and Sound Service, includes Automatic Notification of Air Bag Deployment, Stolen Vehicle Tracking, Emergency Services, Roadside Assistance, Remote Door Unlock, Remote Horn and Lights, GM Goodwrench Remote Diagnostics, AccidentAssist and Online Concierge. Drivers can also obtain the available voice-activated, hands-free Personal Calling service and Virtual Advisor that provides location-based traffic and weather reports and other personalized information
• Air conditioning, dual-zone, automatic, individual climate settings for driver and right front passenger (Must be substituted with (CJ3) Air Air conditioning, dual-zone, manual when (VYU) Snow Plow Prep Package is ordered. - Not available with (VYU) Snow Plow Prep Package)
• Sound system, ETR AM/FM stereo with 6-disc CD changer, includes seek-and-scan, digital clock, auto-tone control, speed-compensated volume, TheftLock, Radio Data System (RDS), and Bose speaker system (includes 6-speakers, Bose amplifier and Bose Subwoofer) (May be substituted with (UB1) Sound system, AM/FM stereo with CD and cassette player)

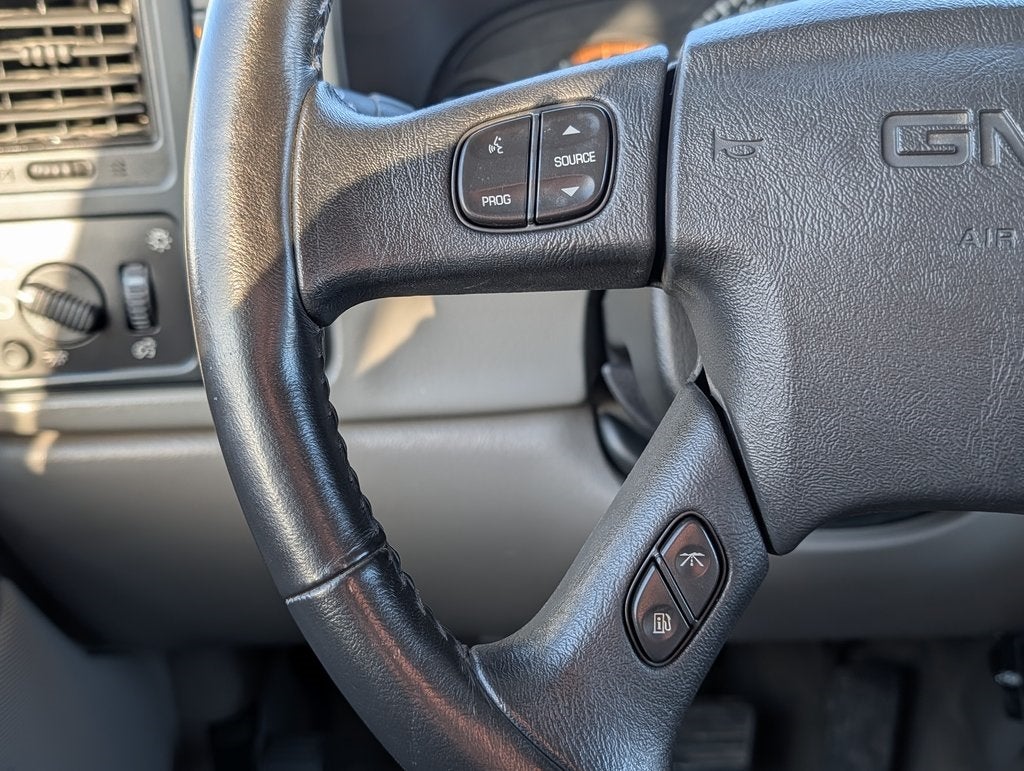

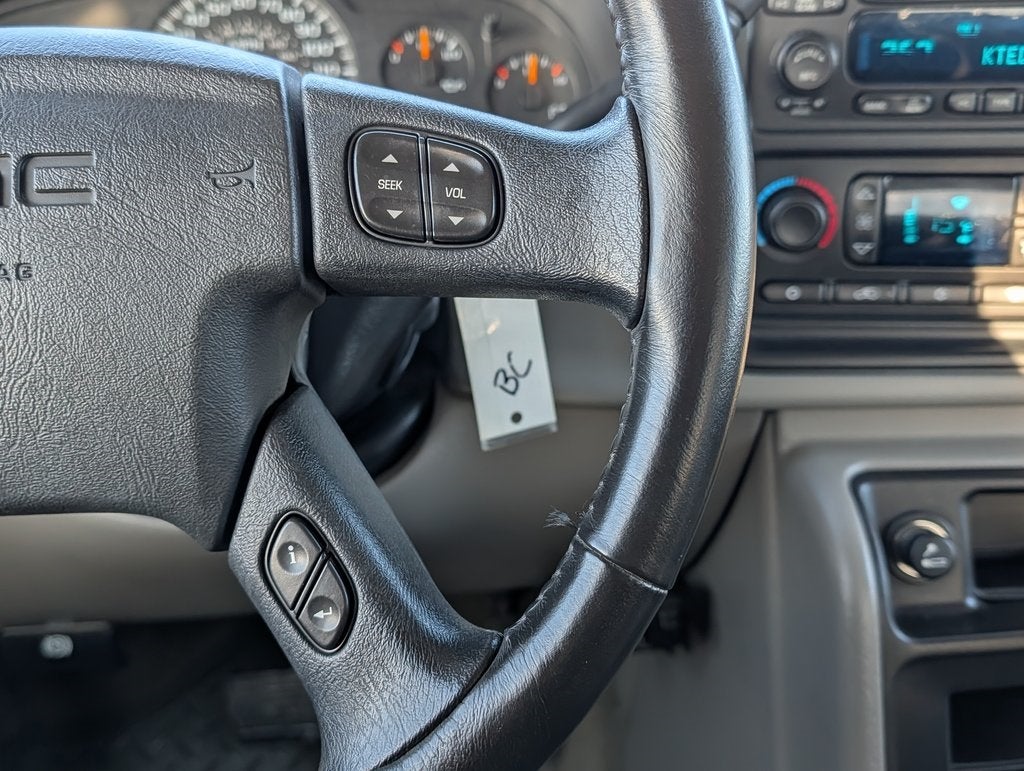

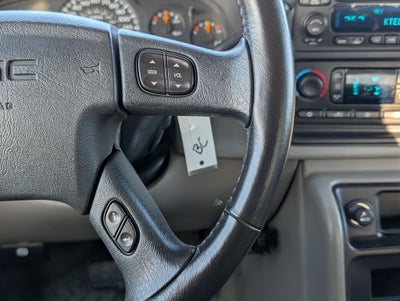

• Sound system feature, steering wheel mounted radio controls, Radio and Information Center (DIC). Provides access to enhanced Driver Information Center features and information.

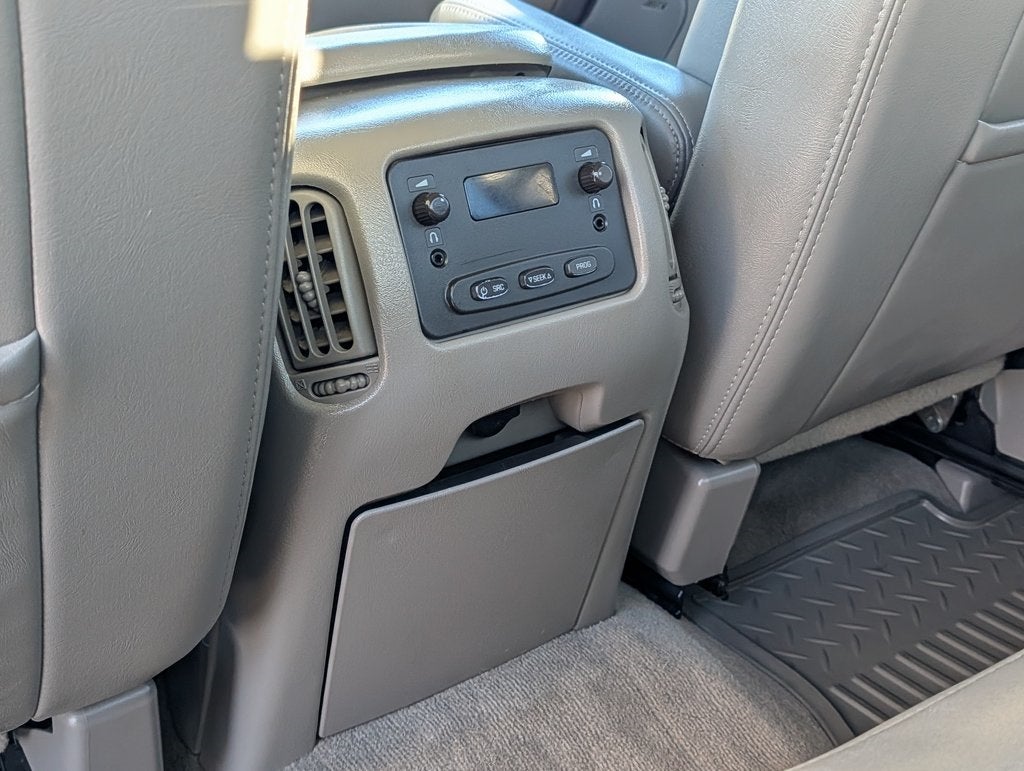

• Sound system feature, rear audio controls, includes dual headphone jacks (headphones not included), power outlet and controls for volume, station selection and media (Requires Crew Cab Models)
• Cupholders, front (Also includes rear cupholders on Extended and Crew Cab Models.)
• Cigarette lighter, on instrument panel
• Power outlets, auxiliary, covered, 2 dash-mounted, 12-volt
• Headliner, Shale-colored cloth, with matching retainer moldings
• Mirror, inside rearview, electrochromic (light-sensitive auto dimming) 8-point compass and outside temperature indicator
• Visors, padded, Shale-colored, driver and passenger side with cloth trim, extenders, pocket on driver side and vanity mirror on passenger side
• Assist handle, front passenger (Also includes rear outboard passenger assist handle on Extended and Crew Cab Models)
• Lighting, dome lamp, reading, backlit instrument panel switches and door handle-activated illuminated entry
• Door trim, side reflectors (Also includes lights on SLE and SLT Models)
• Coat hook, driver side (Also includes passenger side coat hook on Extended and Crew Cab Models)

• Brakes, 4-wheel antilock, 4-wheel disc
• Air bags, frontal, driver and right front passenger (Regular and Extended Cab Models includes passenger side deactivation switch. - Always use safety belts and proper child restraints, even with air bags. Children are safer when properly secured in a rear seat. See the Owner's Manual for more safety information)
• Daytime running lamps, includes automatic exterior lamp control

HEAVY-DUTY POWER PACKAGE

• includes (LLY) Engine
• Duramax 6600 Turbo Diesel V8
• (M74) Transmission
• Allison 1000 5-speed automatic and (G80) Differential
• locking
• heavy-duty
• rear

ENGINE, DURAMAX 6600 TURBO DIESEL V8

• (with Manual Transmissions 300 HP [223.8 kW] @ 3000 rpm
• 520 lb.-ft. [702.0 N-m] @ 1600 rpm) (with Automatic Transmissions 310 HP [231.2 KW] @ 3000 rpm
• 605 lb.-ft. [816.8 N-m] @ 1600 rpm) (Includes (TQ3) Battery
• heavy-duty dual
• 770 cold-cranking amps
• (K47) Air cleaner
• high capacity and (K05) Engine block heater)

TRANSMISSION, ALLISON 1000 5-SPEED AUTOMATIC, ELECTRONICALLY CONTROLLED WITH OVERDRIVE AND ELECTRONIC GRADE BRAKING

• includes tow/haul mode selector and (KNP) Cooling
• external transmission oil cooler

SLT PREFERRED EQUIPMENT GROUP

• includes standard equipment

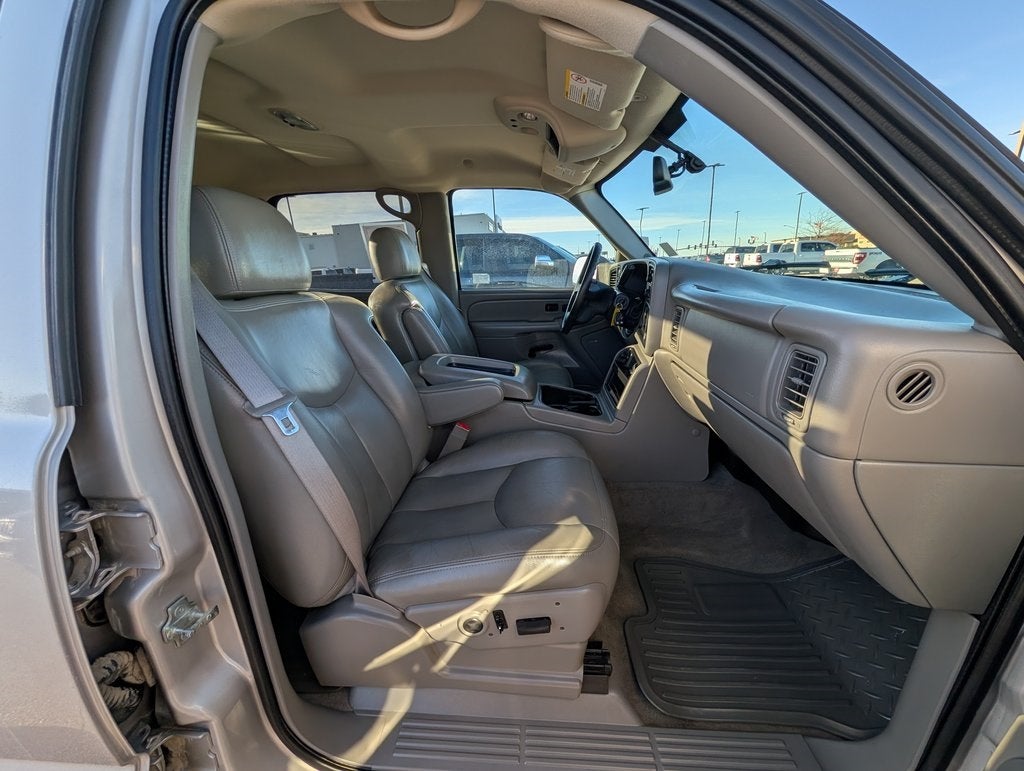

SEATS, FRONT POWER RECLINING FULL-FEATURE BUCKETS

• includes adjustable head restraints
• floor console
• driver and passenger power lumbar
• driver and front passenger 10-way power adjustable
• dual inboard armrests
• heated driver and passenger cushion and back
• 2-position driver-side memory and storage pockets (STD)

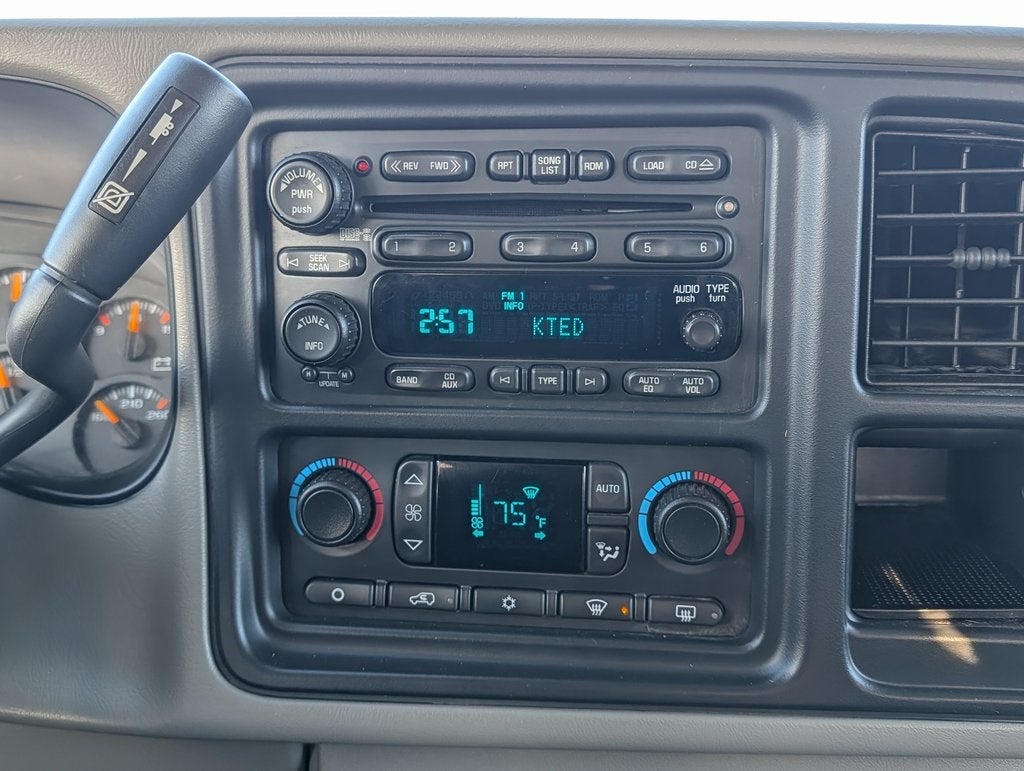

SOUND SYSTEM, ETR AM/FM STEREO WITH 6-DISC CD CHANGER

• includes seek-and-scan
• digital clock
• auto-tone control
• speed-compensated volume
• TheftLock
• Radio Data System (RDS)
• and Bose speaker system (includes 6-speakers
• Bose amplifier and Bose Subwoofer) (STD)

SEAT TRIM, LEATHER

• (STD)

TRAILERING EQUIPMENT, HEAVY-DUTY

• includes trailering hitch platform

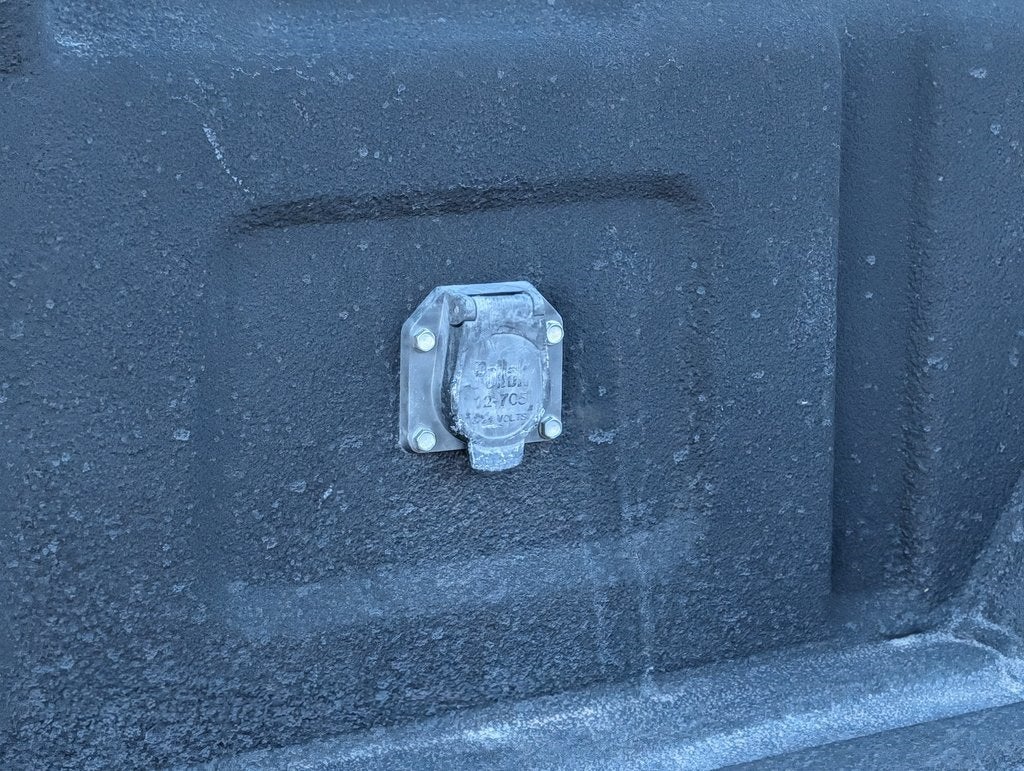

• 7-wire harness (harness includes wires for: park lamps
• backup lamps
• right turn
• left turn
• electric brake lead
• battery and ground) with independent fused trailering circuits mated to a 7-way sealed connector
• 7-way to 4-way trailer adapter

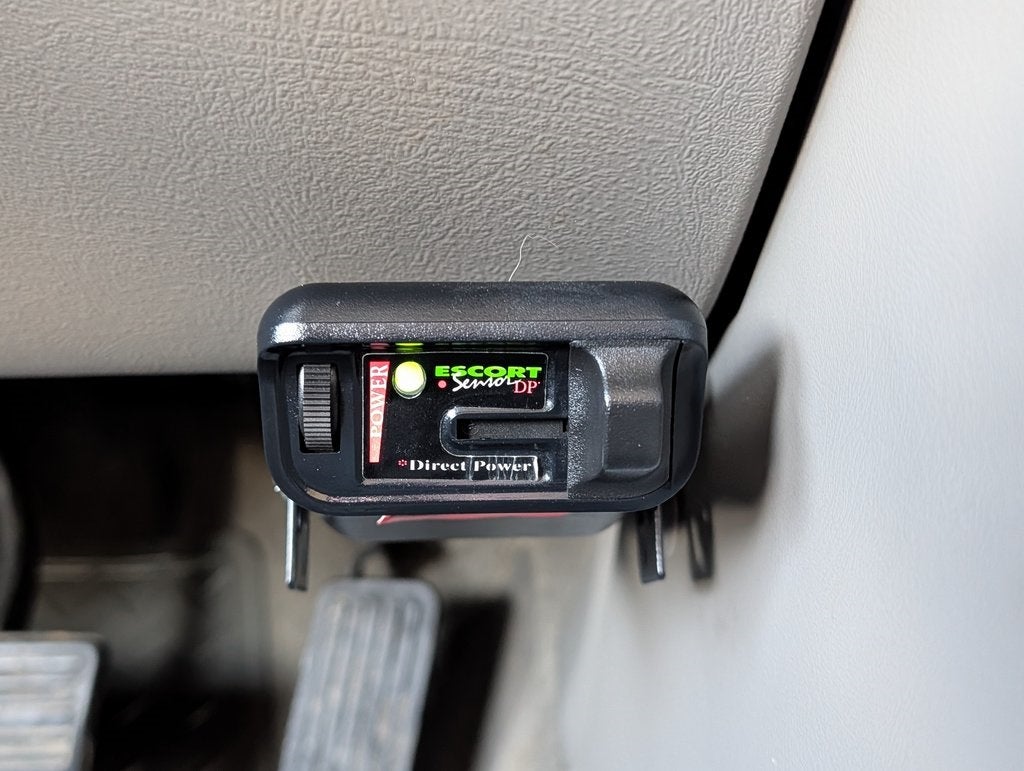

• instrument panel jumper wiring harness for electric trailer brake controller
• and 1-way sealed connector for center high-mounted stop/brake lamp. Also includes (K47) Air cleaner
• high capacity

GVWR, 11,400 lbs (5171 kg)

• includes dual rear wheels (STD)

MIRRORS, OUTSIDE REARVIEW, POWER, HEATED, CAMPER-STYLE

• includes power extending arms and turn signal in glass

ENGINE BLOCK HEATER

• (Included with (LLY) Engine
• Duramax 6600 Turbo Diesel V8)

AIR CLEANER, HIGH-CAPACITY

• (Included with (LLY) Engine
• Duramax 6600 Turbo Diesel V8
• (Z82) Trailering equipment
• heavy-duty or (VYU) Snow Plow Prep Package)

SKID PLATE PACKAGE

• includes aluminum front underbody shield starting behind front bumper and running to 1st cross-member
• protecting front underbody
• oil pan
• differential case and transfer case
• frame-mounted shields

BATTERY, HEAVY-DUTY DUAL, 770 COLD-CRANKING AMPS

• includes rundown protection and retained accessory power

SOUND SYSTEM FEATURE, XM SATELLITE RADIO.

• features 67 channels of 100% commercial-free music included in its over 150 channels of the best in music
• news
• sports
• talk
• comedy
• XM Instant Traffic and Weather
• and more. Digital quality sound with coast-to-coast signal coverage. Three trial months -no obligation

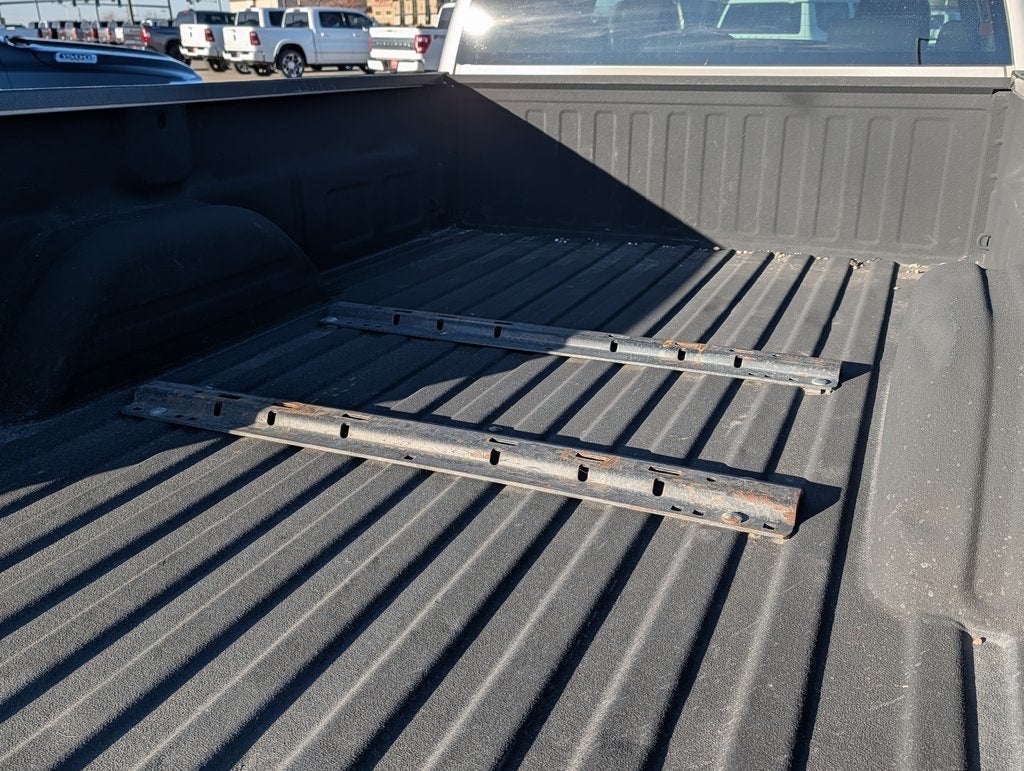

TRAILERING WIRING PROVISIONS, FOR CAMPER, 5TH WHEEL AND GOOSENECK TRAILER

• includes additional 8-way wiring harness routed to front of pickup box and added 7-way sealed connector for the trailer harness

LICENSE PLATE BRACKET, FRONT

• (will be forced on orders with ship-to states that require a front license plate)

TIRE, SPARE LT215/85R16E, ON-/OFF-ROAD, BLACKWALL

• located at rear underbody of vehicle

PICKUP BED, WIDESIDE, BOX

• (STD)

PAINT, SOLID

• (STD)

• HD Handling/Trailering Suspension Package
• Heavy-Duty Power Package
• Heavy-Duty Trailering Equipment
• Skid Plate Package
• AM/FM radio
• Air Conditioning
• Front dual zone A/C
• Power steering
• 4-Wheel Disc Brakes
• ABS brakes
• Chrome Rear Bumper w/Step Pad
• Dual front impact airbags
• Front anti-roll bar
• Front wheel independent suspension
• Fully automatic headlights
• Electronic Cruise Control w/Set & Resume Speed

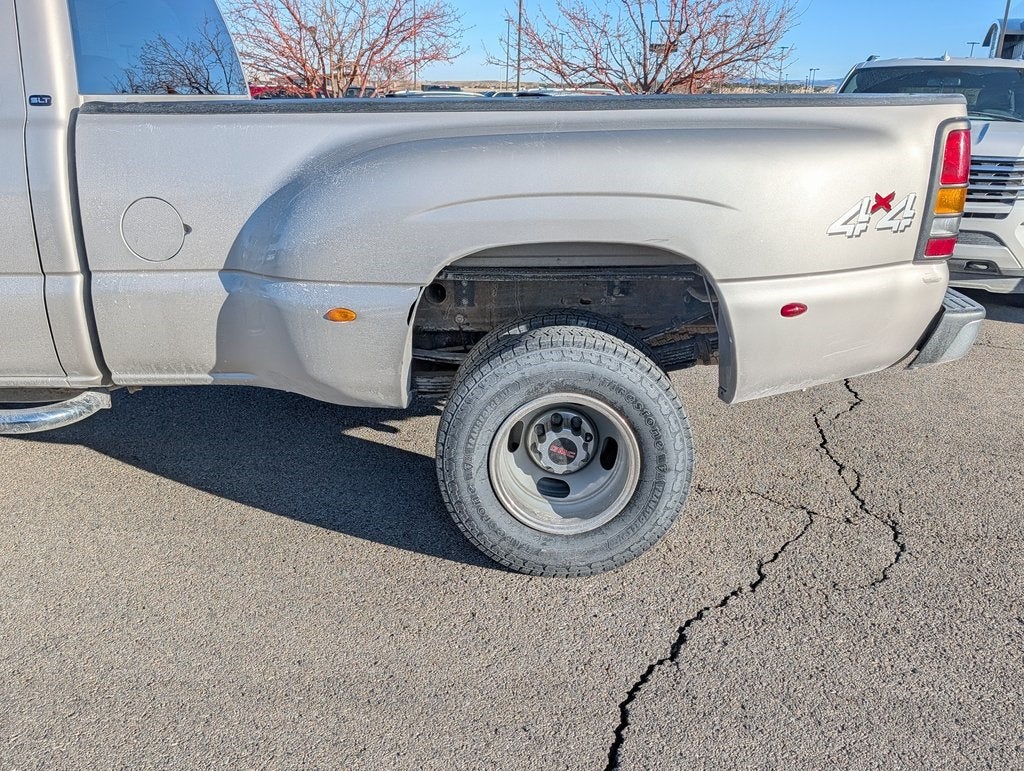

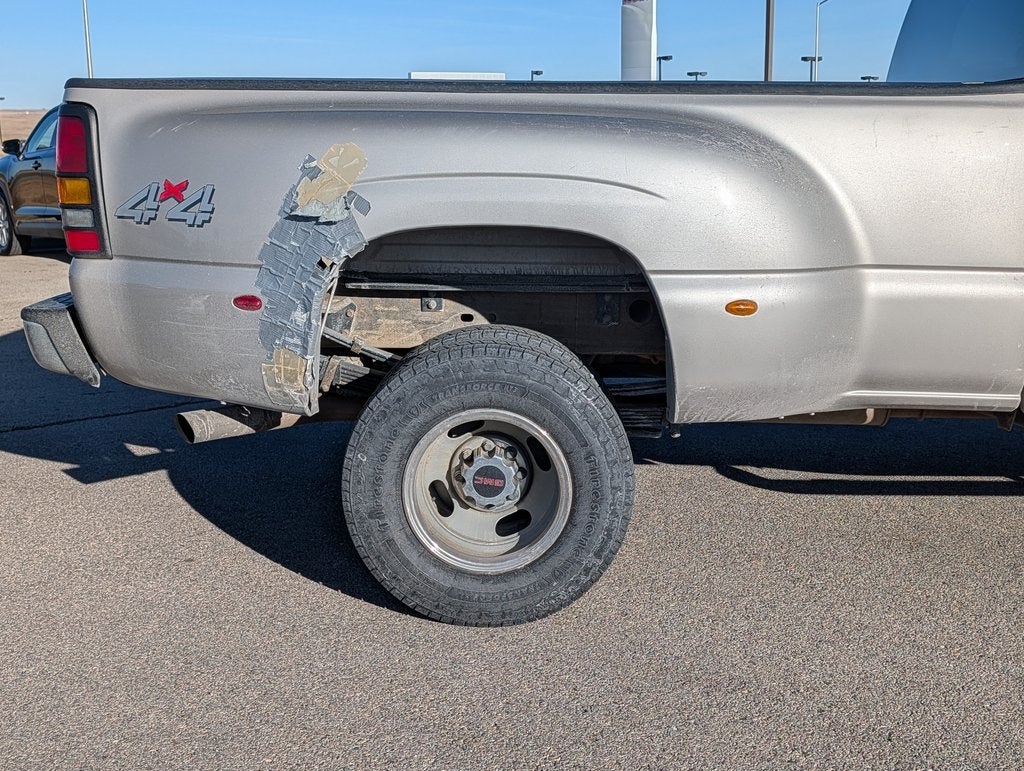

• Dual rear wheels
• Heavy-Duty Rear Automatic Locking Differential
• Dual Heavy-Duty 770 CCA Batteries
• Engine Block Heater
• External Transmission Oil Cooler
• Bumpers: chrome

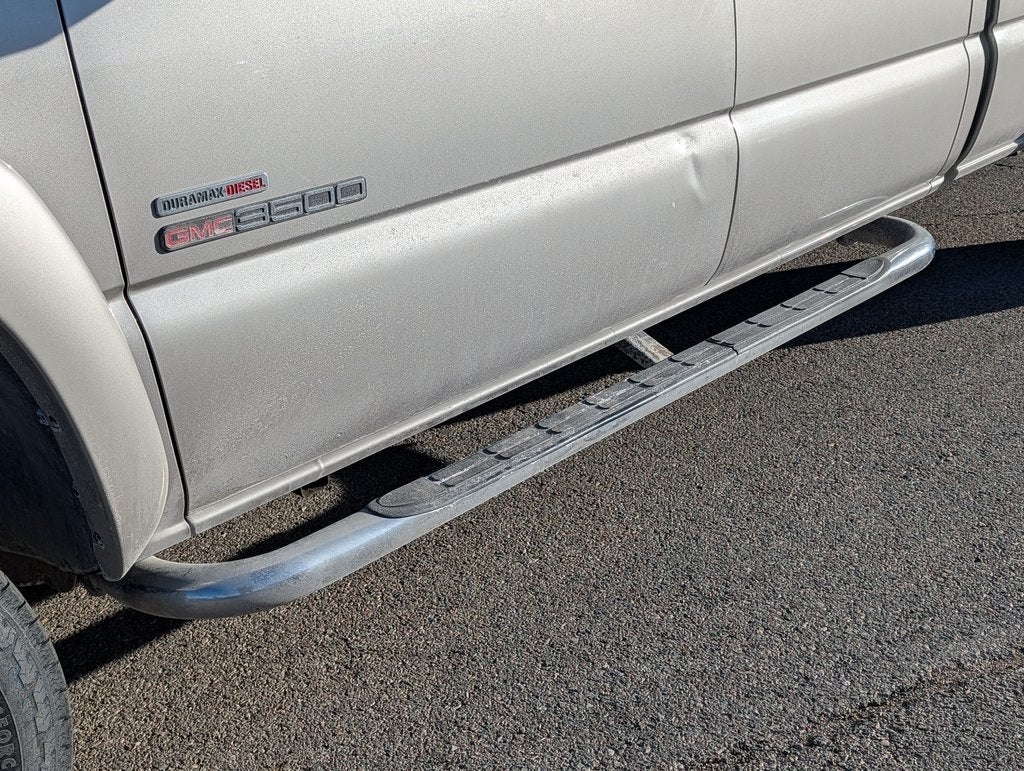

• Chrome Plated Stainless Steel Tubular Assist Steps
• Front License Plate Bracket
• Radiator Grille & Front Bumper Opening Covers
• Rear step bumper
• Driver door bin
• Passenger vanity mirror
• Rear seat center armrest
• Tachometer
• Tilt steering wheel
• Voltmeter
• Split folding rear seat
• Passenger door bin
• Trailering Hitch Platform
• Solar-Ray Deep Tinted Glass
• Variably intermittent wipers

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 770
• Cold Cranking Amps @ 0° F (Primary): 600
• Cold Cranking Amps @ 0° F (2nd): 770
• Maximum Alternator Capacity (amps): 105
• Cooling System
• Total Cooling System Capacity (qts): 23.84
• Total Cooling System Capacity (qts): 13.32
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4800
• Gross Axle Wt Rating - Rear (lbs): 8550
• Curb Weight - Front (lbs): 3424
• Curb Weight - Rear (lbs): 2791

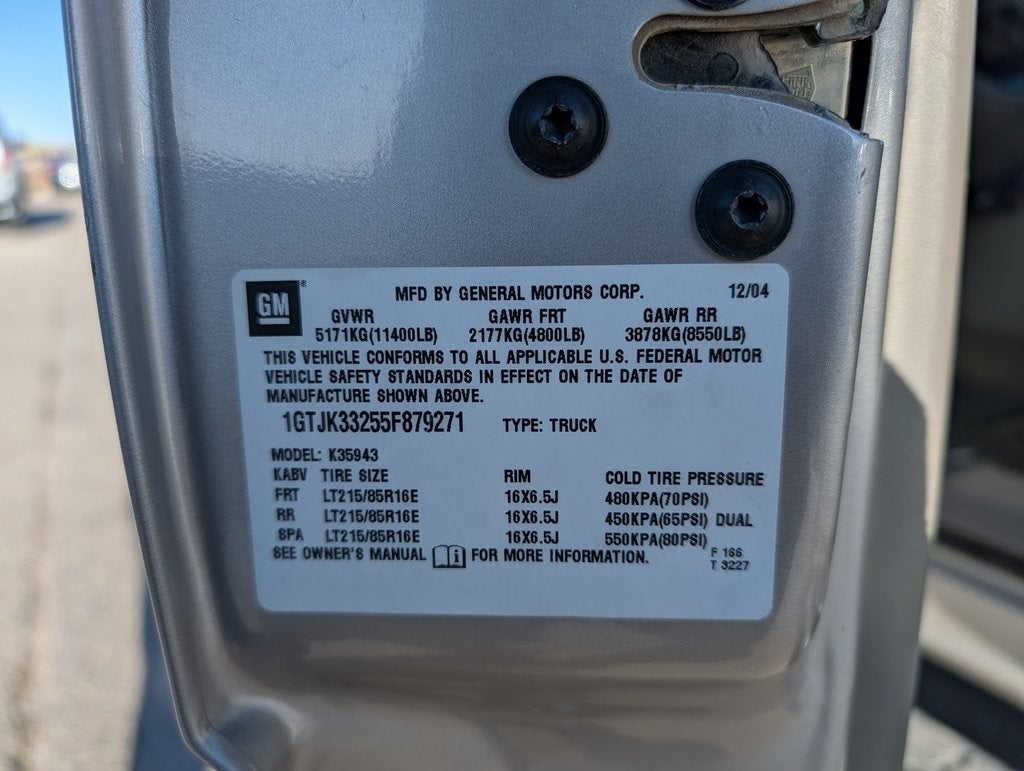

• Gross Vehicle Weight Rating Cap (lbs): 11,400
• Gross Combined Wt Rating (lbs): 22000
• Gross Combined Wt Rating (lbs): 16000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 7500
• Dead Weight Hitch - Max Tongue Wt. (lbs): 1000
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 12000
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 9100
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1800
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1365
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 16100
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 9100
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 4025
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 2275
• Suspension
• Suspension Type - Front: Torsion Bar
• Suspension Type - Rear: 3-Stage Springs
• Spring Capacity - Front (lbs): 4800
• Spring Capacity - Rear (lbs): 8600
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): 4800
• Axle Capacity - Rear (lbs): 9200
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Axle Ratio (:1) - Rear: 4.10
• Shock Absorber Diameter - Front (mm): 36
• Shock Absorber Diameter - Rear (mm): 36
• Stabilizer Bar Diameter - Front (in): 1.25
• Brakes
• Brake Type: Pwr
• Brake ABS System: Four-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.8 x 1.5
• Rear Brake Rotor Diam x Thickness (in): 12.8 x 1.2
• Tires
• Front Tire Order Code: XEF
• Front Tire Order Code: XEC
• Rear Tire Order Code: XEF
• Rear Tire Order Code: XEC
• Spare Tire Order Code: XEF
• Spare Tire Order Code: XEC

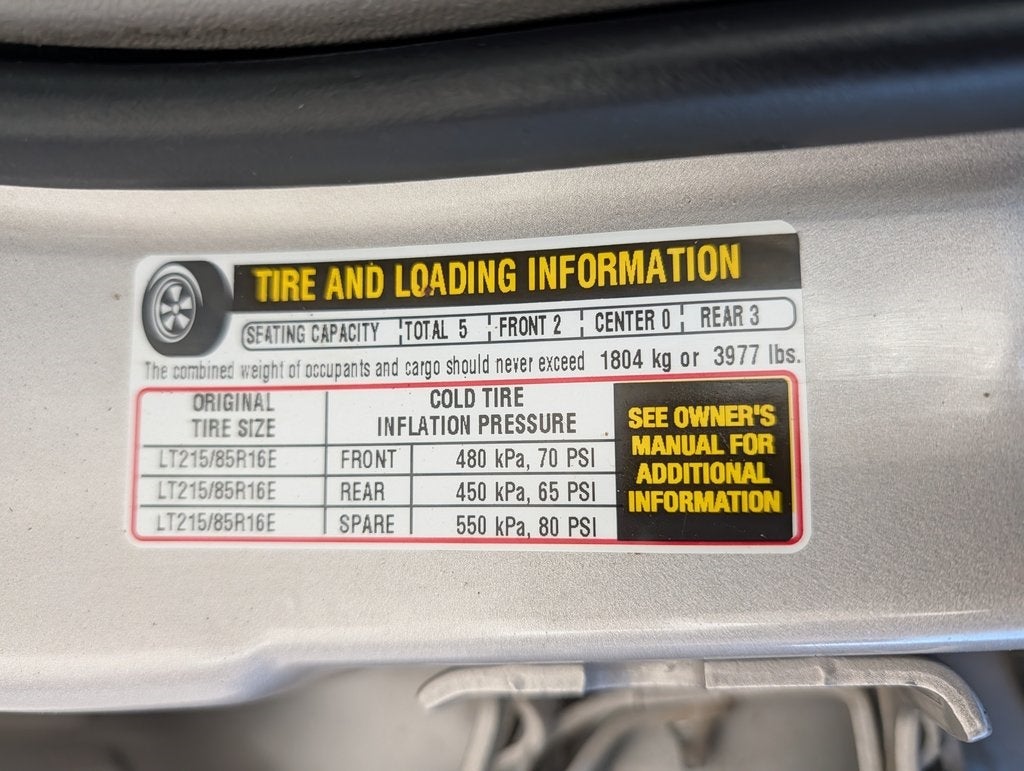

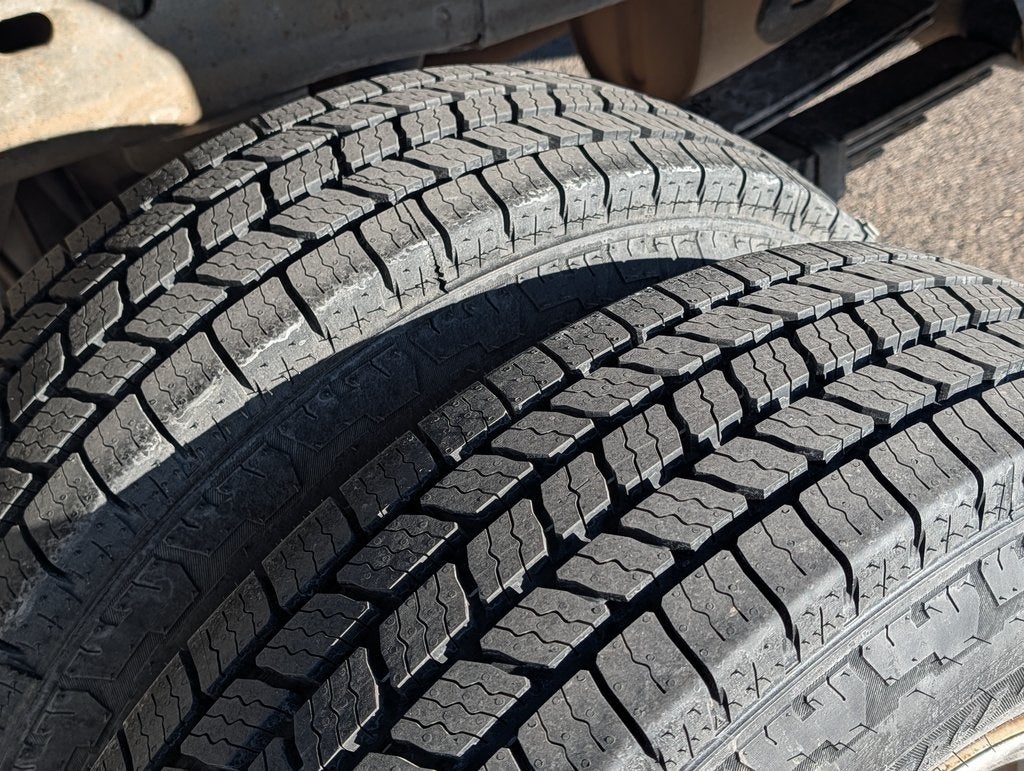

• Front Tire Size: LT215/85R16
• Rear Tire Size: LT215/85R16
• Spare Tire Size: LT215/85R16
• Front Tire Capacity (lbs): 2430
• Rear Tire Capacity (lbs): 2150
• Spare Tire Capacity (lbs): 2430
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 16 x 6.5
• Rear Wheel Size (in): 16 x 6.5
• Spare Wheel Size (in): 16 x 6.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr Recirculating Ball
• Steering Ratio (:1), On Center: 24.1
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 55.5
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 34
• Fuel Tank Location: LH
• Exterior Dimensions
• Wheelbase (in): 167.0
• Length, Overall w/o rear bumper (in): 256.2
• Width, Max w/o mirrors (in): 96.1
• Height, Overall (in): 77.3
• Overhang, Front (in): 37.0
• Overhang, Rear w/o bumper (in): 52.1
• Front Bumper to Back of Cab (in): 148.1
• Cab to Axle (in): 55.9
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 34.4
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 10.6
• Ground Clearance, Rear (in): 13.6
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 97.6
• Cargo Box Width @ Top, Rear (in): 61.9
• Cargo Box Width @ Floor (in): 64.8
• Cargo Box Width @ Wheelhousings (in): 50.0
• Cargo Box (Area) Height (in): 19.5
• Tailgate Width (in): 61.9
• Cargo Volume (ft³): 73.9
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 5
• Passenger Capacity: 6
• Front Head Room (in): 41.0
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 65.2
• Front Hip Room (in): 61.4
• Second Head Room (in): 39.0
• Second Leg Room (in): 39.1
• Second Shoulder Room (in): 65.1
• Second Hip Room (in): 62.9
• Summary

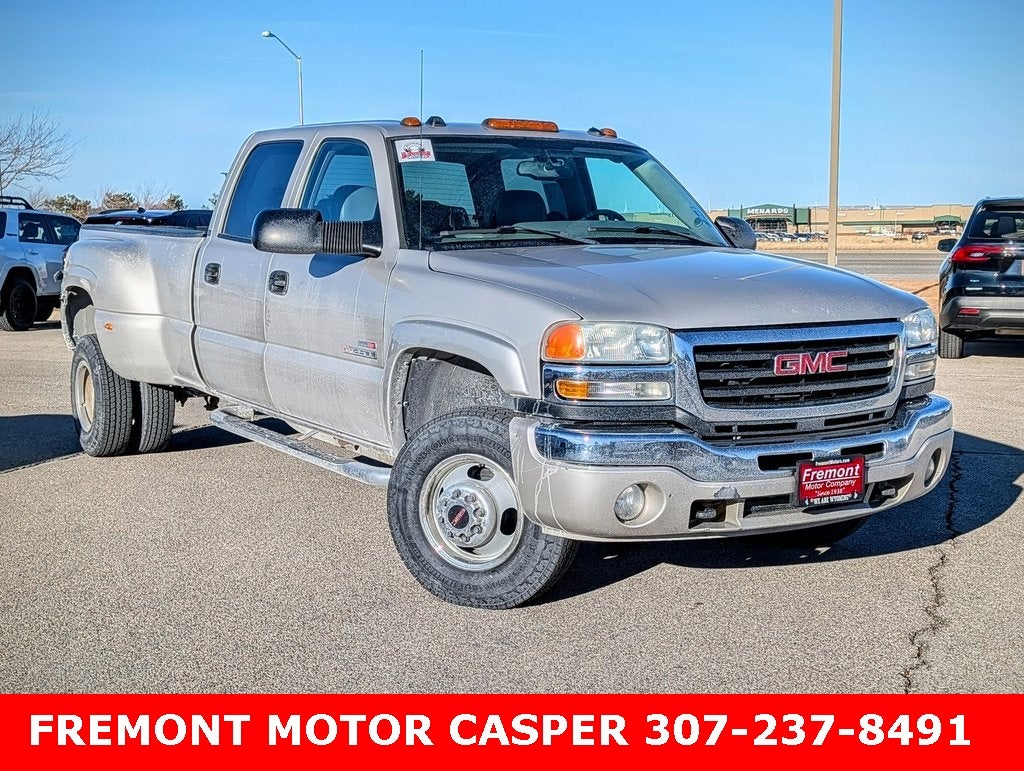

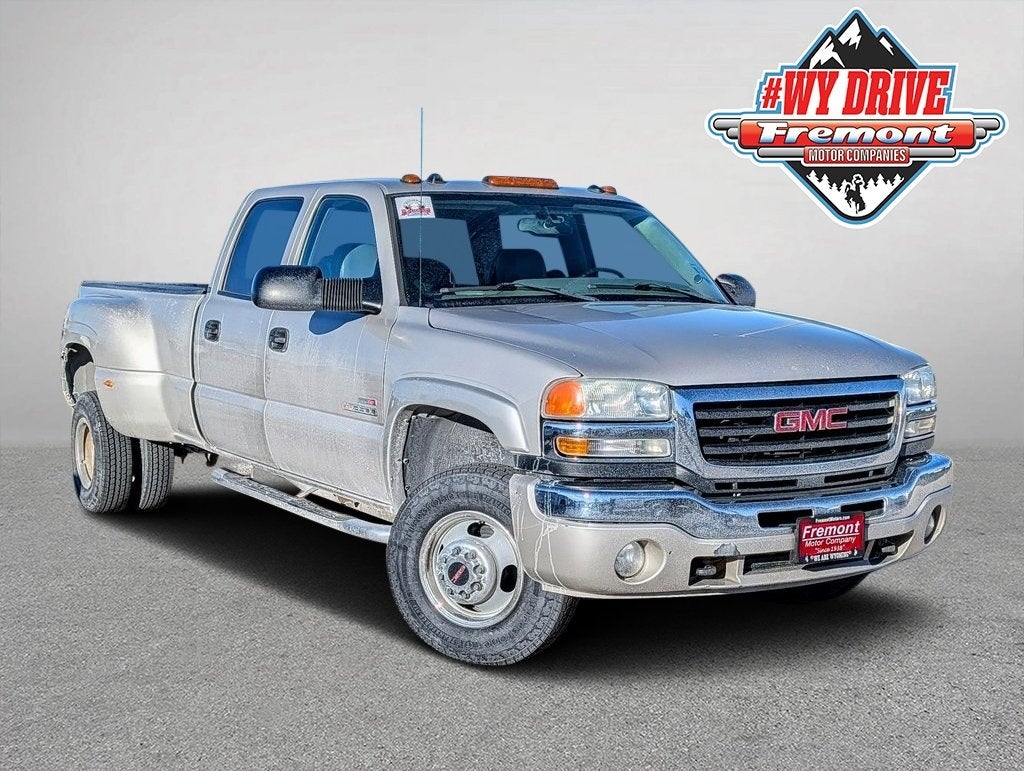

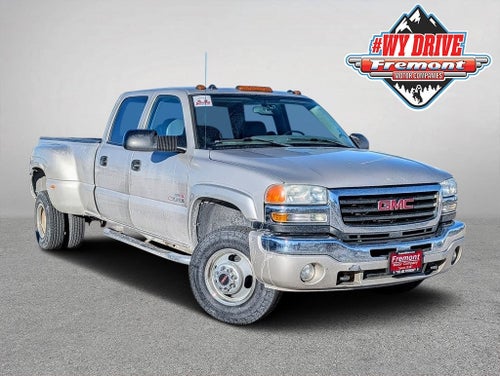

• Vehicle Name: GMC Sierra 3500
• Body Style: Crew Cab 8' Wideside
• Body Code: E63
